Reverse Engineering

Reverse Engineering …

creating useful 3D CAD databases and 2D Technical Engineering Drawings from existing parts

Wall Mount Toilet Reverse Engineered from existing Porcelain Toilet then Modified

Rectangular Box Reverse Engineered and 3D CAD Database used for 3D Injection Mold Design

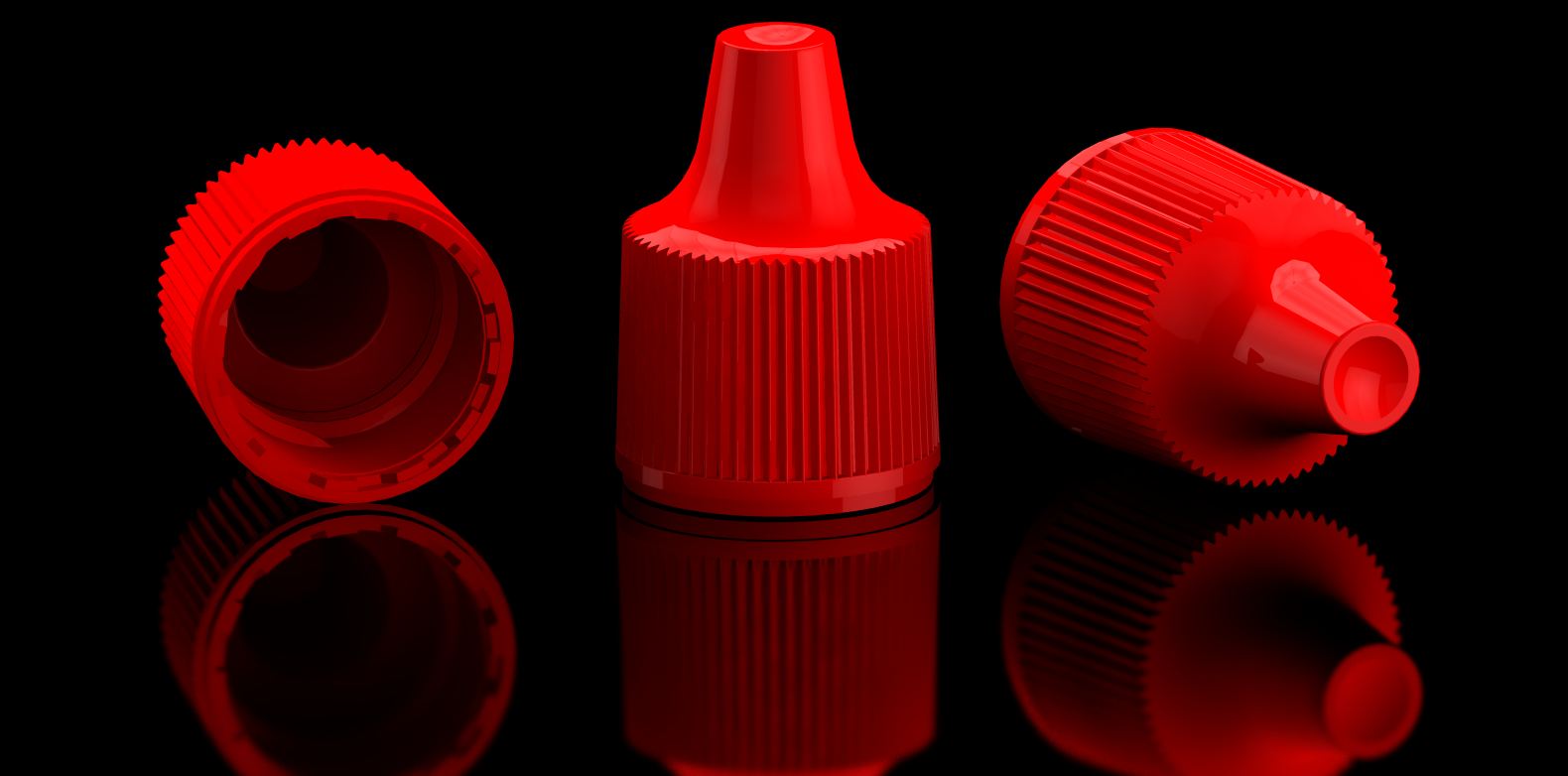

Nasal Spray Bottle Cap Reverse Engineered to use for new 16 Cavity Injection Mold Design

18 Gallon Tub Reverse Engineered for new Injection Mold Design, Lid added for Product Versatility

Alternative Fuel Carburetor Reverse Engineered from Two Different Products and Modified

88oz. Bottle Reverse Engineered and Modified with Improvements for new Blow Mold Design

Reverse Engineering Provides:

3D CAD Databases used for 3D Printing and/or 3D Injection & Die Cast Mold Design
2D Technical Engineering Part Drawings
Accurate Geometry
Quality Enhancements
Function Enhancements
Proper Material Selection
Reduce Part Weight, Material Costs
Parting Lines, Draft, Radii and Shut-Offs added to 3D CAD Database as needed
DFM (Designed for Manufacture)

Any Existing Parts or Assemblies can be Reverse Engineered!

Get Parts Reverse Engineered Now!

Click Here

3D Accuracy LLC’s Services:

3D Printing of End Use Production Parts & Rapid Prototype Models – 3D Product Design – 3D Injection & Die Cast Mold Design
