Injection Mold Designs

3D Injection Mold Design from 3D Accuracy LLC …

Over 40 years of experience equates to molds that cycle quickly, dependably and profitably every time!

Want to know more? Just click an image!

Injection Mold Design Types:

Thermoplastic & Thermoset Materials
Standard Molds
Custom Molds
Slides, Multiple Slides
Lifters
Collapsible Cores
Hand Loaded Inserts
Stripper Plate Molds
Three-Plate Molds
Reverse Injection/Ejection Molds
Internal & External Hot Runner Systems
Valve Gates Hot Runner Systems
Unscrewing Molds
Stack Molds
Multiple Parting Line Plate Movement
Interchangeable Insert Molds
Two Color/Shot Molds
Over-Molded Molds

… and much, much more!

3D Accuracy LLC provides:

3D CAD Databases for all machined components and 2D Technical Engineering Drawings with BOM (bill of materials) and detail drawings of all inserts and mold base plates should you require.

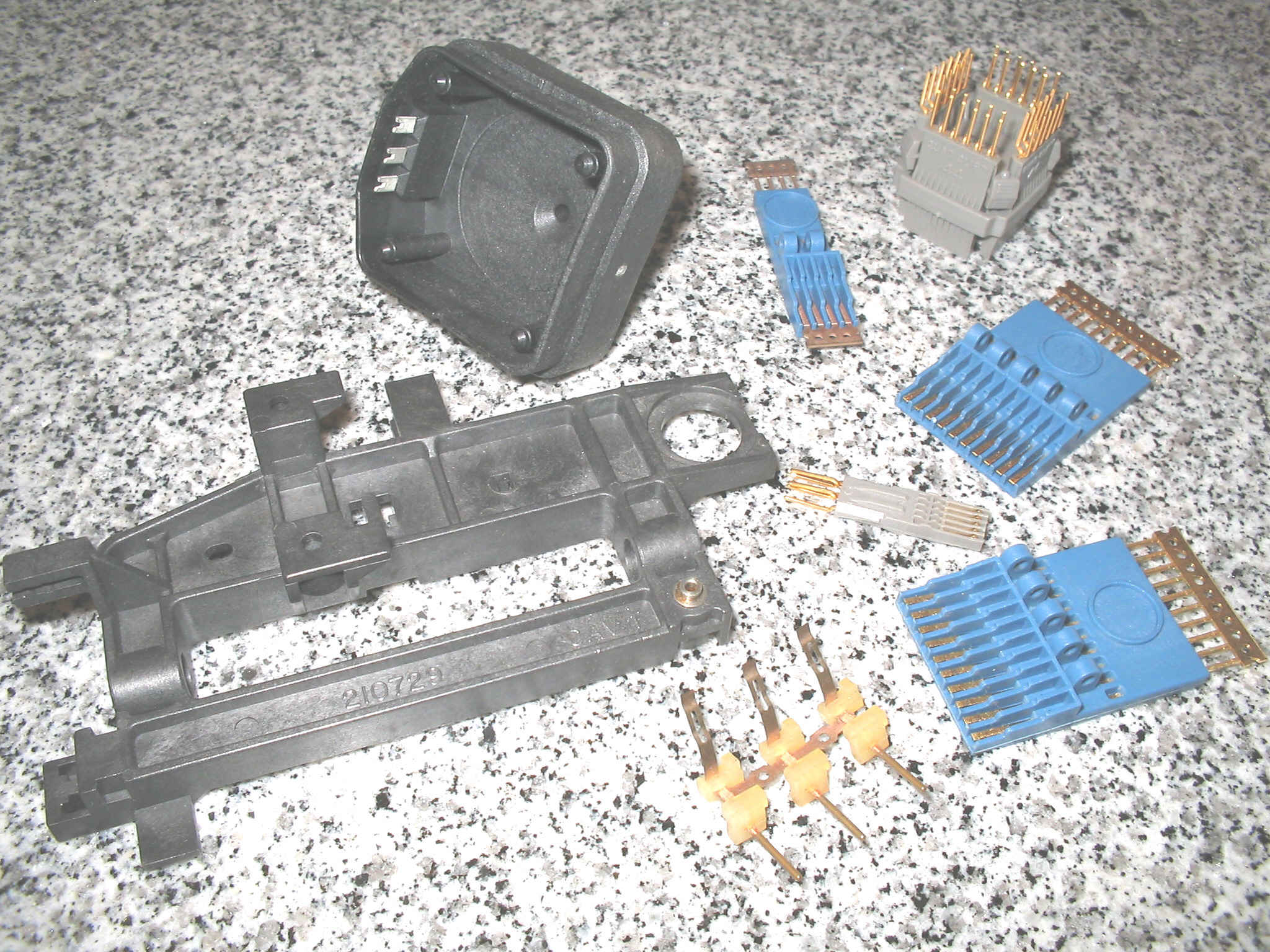

Parts with hand loaded inserts from Molds Designed by 3D Accuracy LLC

Get 3D Injection & Die Cast Mold Designs Now!

Click Here

3D Accuracy LLC’s Services:

3D Printing of End Use Production Parts & Rapid Prototype Models – 3D Product Design – 3D Injection & Die Cast Mold Design

3D Accuracy LLC’s Current Special:

Get it now before time runs out!

Days

Hours

Minutes

Seconds

Current Special Offer has expired. Watch for the next Special Offer coming soon.

I have too much Fluorescent Green ABS! Get a 10% Discount on 3D Printed Fluorescent Green ABS Thermoplastic parts by mentioning you saw this Special.

What customers say:

"Please contact 3D Accuracy LLC for the new product development design matters. They are experts in this field and the work is outstanding. Please stay in touch and once you have the part drawings available then we can proceed with the formal quote."

"I can't thank you enough for everything you have done to take this from a simple, poorly drawn prototype design, to a fully functional and fantastic looking finished product based on some emails and one phone call. I feel very lucky to have found you and I will not forget this ..."

Just looked over the Product info!!! Perfectly done ... AS USUAL! Very concise and easy to understand. Love, love, love it. Thank you

"... the molded parts look good, there was no evidence of sinking or distortion - that means good control on mold temperature. There were no issues with the part sticking to the hot half and no ejection issues. There were no issues with the valve gate system. The preliminaries look very promising - you did a very good job on this mold design!"

"You certainly do work long hours! I am just getting to see all three emails for the first time tonight and it's like opening presents for Christmas! These look awesome! The knowledge you have put into this is incredible and I owe you a great debt of gratitude for the work you have done."

"I am really looking forward to working with you ... you are indeed the most professional of the CAD people I have contacted.

"Genius good this design is! My understanding of this design is based on the explanation which is attached. I think these documents are dramatic & visual, they help me understand how it works and how to test its function."
